- Place of Origin: ANHUI, CHINA
- Brand Name: ANHUIDIANQI
- Model Number: KVV
It is used for supervising and controlling return circuit and protective circuit of A.C rated voltage of 450/750V or lower.
Executive standard: GB9332-88

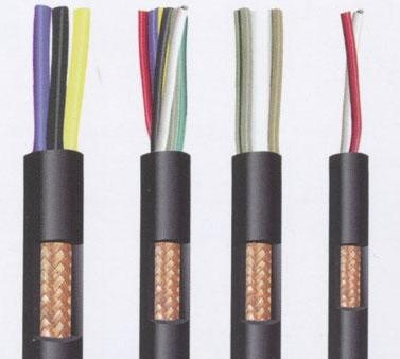

Type, Description and Application Occasion
Type | Description | Application occasion |
KVV | Control cable with Cu core, PVC insulation and sheath | To be fixedly laid indoor, in cable furrow, pipe |
KVVP | Control cable with Cu core, PVC insulation and sheath, braided shielding | To be fixedly laid indoor, in cable furrow, pipe with demand on shielding |
KVVP2 | Control cable with Cu core, PVC insulation and sheath, copper tape shielding | To be fixedly laid indoor, in cable furrow, pipe with demand on shielding |
KVV22 | Control cable with Cu core, PVC insulation and sheath, steel tape armoring | To be fixedly laid indoor, in cable furrow, pipe, underground with demand on enduring strong mechanical force |
KVV32 | Control cable with Cu core, PVC insulation and sheath, steel wire armoring | To be fixedly laid indoor, in cable furrow, pipe, shaft with demand on enduring strong mechanical force |
KVVR | Control soft cable with Cu core, PVC insulation and sheath | To be laid indoor with demand on mobility and softness. |
KVVRP | Control soft cable with Cu core, PVC insulation and sheath, braiding shielding | To be laid indoor with demand on mobility and softness. |
Note: we also produce flame retardant cable according to the requirements of customer. Prefix “ZR-” should be added. E.g.: ZR-KVV type
Various Specification Range
Type | Rated voltage V | Nominal cross section off conductor area mm2 | |||||||
0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
Core number | |||||||||
KVV KVVP | 450/750 | - | 2-61 | 2-14 | 2-10 | ||||
KVVP2 | 4-61 | 4-14 | 4-10 | ||||||
KVV22 | － | 7-61 | 4-61 | 4-14 | 4-10 | ||||
KVV32 | － | 10-61 | 7-61 | 4-14 | 4-10 | ||||
KVVR | 4-61 | － | － | ||||||
KVVRP | 4-61 | 4-48 | － | － | |||||
Note: Cores recommended: 2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52 or 61
