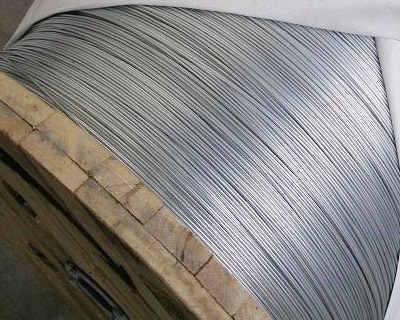

Aluminum Clad Steel Wire (AS wire/ACS Wire)
Application of ACS Wire
Manufacture of bare overhead conductor, OPGW, ground wire, messenger wire, guy wire, formed wire for protecting, terminating and splicing transmission and distribution lines, fence, barber wire and hardware.
ASTM B 415-02
1. Tensile Requirement Nominal Diameter Size 20.3% 27% 30% 40% in. mm AWG psi MPa psi MPa psi MPa psi MPa 0.2043 0.1880 0.1819 0.1729 0.1620 0.1549 0.1443 0.1369 0.1285 0.1144 0.1019 0.0907 0.0808 5.19 4.78 4.62 4.39 4.11 3.93 3.67 3.48 3.26 3.91 2.59 2.30 2.05 4 5 6 7 8 9 10 11 12 155 000 160 000 165 000 170 000 175 000 180 000 185 000 190 000 195 000 195 000 195 000 195 000 195 000 1070 1100 1140 1170 1210 1240 1280 1310 1340 1340 1340 1340 1340 125 000 129 000 133 000 137 000 141 000 145 000 150 000 154 000 156 000 156 000 156 000 156 000 156 000 862 889 917 945 972 1000 1034 1062 1076 1076 1076 1076 1076 80 000 84 000 88 000 92 000 96 000 96 000 98 000 98 000 99 500 99 500 99 500 99 500 99 500 703 731 758 786 786 814 841 869 883 883 883 883 883 80 000 84 000 88 000 92 000 96 000 96 000 98 000 98 000 99 500 99 500 99 500 99 500 99 500 552 579 607 634 662 662 676 676 686 686 686 686 686 % Conductivity Density at 20°C Modulus of Elasticity psi Coef. of Linear Exp. Temperature Coef. of Resistance 20.3 0.2381 lb/in3 (6.59 g/cm3) 23.5×106 (162 GPa) 0.0000072/°F (0.0000126/) 0.0020/°F (0.0036/) 27 0.2135 lb/in3 (5.91 g/cm3) 20.3×106 (140 GPa) 0.0000077/°F (0.0000134/) 0.0020/°F (0.0036/) 30 0.2027 lb/in3 (5.61 g/cm3) 19.1×106 (132 GPa) 0.0000079/°F (0.0000138/) 0.0021/°F (0.0038/) 40 0.1676 lb/in3 (4.64 g/cm3 ) 15.8×106 (109 GPa) 0.0000089/°F (0.0000155/) 0.0022/°F (0.0040/) Specified Diameter, in. Permissible Variations in Specified Diameter, plus and minus 0.2043 to 0.1000,incl 0.1000 to 0.0800,incl 1.5% 0.0015 in. (0.038mm) % Conductivity % of Nominal Wire Radius D.C. Resistance at 20 20.3 27 30 40 10% 14% 15% 25% 51.01 Ω·cmil/ft 38.41 Ω·cmil/ft 34.57 Ω·cmil/ft 25.93 Ω·cmil/ft
2. Physical Constants
3. Wire Diameter Variations
4. Aluminum Thickness and Resistance
